Description

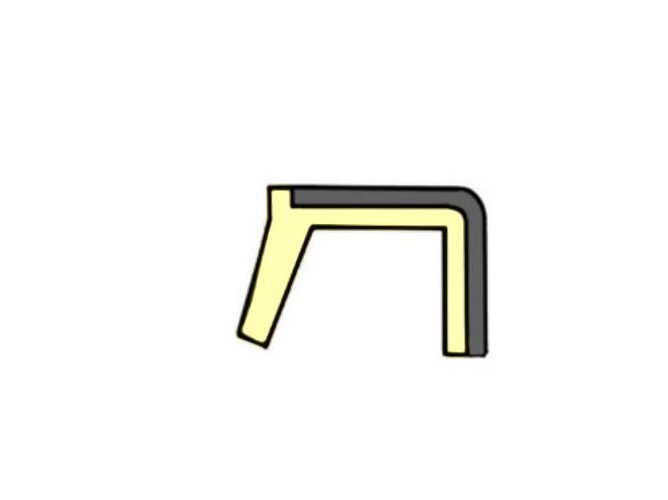

DLI is a dust seal for the swing and rotation of hinge pins and bushings. It can be applied under harsh dust conditions to improve the durability of the equipment.
Technical Data:
Temperature: -20 to +100℃
Speed: ≤1m/s
Material: PU+SPCC
Typical applications:
Hydraulic cylinders, construction machinery, presses, agricultural machinery, elevators, industrial equipment, injection molding machines, etc.
DLi wiper seal Dimenstions:
| d* D * H (mm) | d* D * H (mm) | d* D * H (mm) | d* D * H (mm) | d* D * H (mm) |
| 35*45*5 | 55*70*5 | 71*86*4 | 90*100*7 | 110*130*8 |
| 38.1*50.9*6.35 | 57.15*69.85*6.35 | 75*90*4 | 90*105*4 | 110*135*8 |
| 38.1*57.2*9.525 | 57*76*9.525 | 75*90*5 | 90*105*6 | 114.3*133.5*7.92 |
| 40*50*5 | 57.5*69.95*6.35 | 75*90*6 | 90*105*8 | 115*125*6 |
| 40*50*8 | 60*70*4 | 75*90*7 | 90*106*8 | 115*130*8 |
| 44.45*57.15*6.35 | 60*70*5 | 76.2*88.9*7.94 | 90*110*12 | 115*135*8 |
| 44.45*62.1*9.525 | 60*75*4 | 76.2*102*12.7 | 90*110*8 | 115*138*8 |
| 45*55*4 | 60*75*5 | 80*100*8 | 95*110*6 | 120*125*8 |
| 45*55*5 | 60*75*8 | 80*90*5 | 95*110*8 | 120*130*7 |
| 45*55*6 | 60*80*12 | 80*90*6 | 97.1*120*12.7 | 120*140*6 |
| 45*60*4 | 63.5*76.2*4.76 | 80*95*4 | 100*112*8 | 120*140*8 |
| 50*60*4 | 63.5*76.2*7.94 | 80*95*5 | 100*115*4 | 125*135*8 |
| 50*60*5 | 63.5*82.7*9.525 | 80*95*6 | 100*115*6 | 125*140*8 |
| 50*63*6 | 65*80*4 | 80*95*8 | 100*115*8 | 125*145*8 |
| 50*65*4 | 65*80*6 | 82.55*95.25*7.95 | 100*116*8 | 125*148*8 |
| 50*65*8 | 69.5*95.5*12.7 | 82.5*108*8 | 100*117.5*8 | 127*146.05*7.94 |
| 50.8*63.5*6.35 | 69.85*82.55*7.94 | 83.5*108.2*12.7 | 100*120*7 | 130*140*7 |
| 50*65*7 | 70*84*8 | 85*100*5 | 100*125*6 | 130*150*8 |
| 50*65*6 | 70*85*4 | 85*100*6 | 101.6*117.63*7.92 | 130*154*8 |
| 50*75*12 | 70*85*5 | 85*100*8 | 105*120*7 | 135*150*8 |
| 50.8*68.5*9.525 | 70*85*6 | 88*101.5*8 | 110*120*6 | 140*155*8 |
| 50*80*8 | 70*85*8 | 88.9*101.6*7.94 | 110*120*7 | 140*160*8 |
| 55*65*4 | 70*90*12 | 88.9*104.78*7.94 | 110*125*6 | 140*164*8 |
| 55*70*4 | 70*95*8 | 88.9*114.3*12.7 | 110*125*8 | 160*180*10 |
if the size you required not in the list,please request.
