Description
PDU/ZZHM is a rod and wiper pneumatic seal.
Working Conditions
Material&Temperature Range:
NBR:0℃ ~ 100 ℃; FKM:-20℃ ~ 220 ℃;
PU:0℃ ~ 100 ℃
Pressure:≤1.6 MPa
Speed:≤1m/s

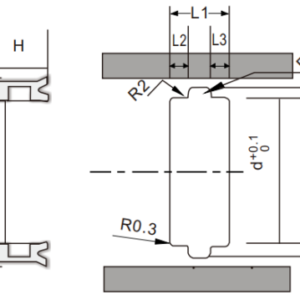

| Part no.: | d | D | h | H | G | D1 |
| ZZHM6*11 | 6 | 11 | 4.00 | 5.00 | 4.50 | 7.60 |
| ZZHM6*10 | 6 | 10 | 3.80 | 4.70 | 4.50 | 7.60 |
| ZZHM8*12 | 8 | 12 | 3.80 | 4.70 | 4.50 | 9.60 |
| ZZHM10*14 | 10 | 14 | 3.80 | 4.70 | 4.50 | 11.60 |
| ZZHM12*16 | 12 | 16 | 3.80 | 4.70 | 4.50 | 13.60 |
| ZZHM14*18 | 14 | 18 | 3.80 | 4.70 | 4.50 | 15.60 |
| ZZHM16*24 | 16 | 24 | 5.70 | 7.10 | 6.00 | 19.40 |
| ZZHM20*28 | 20 | 28 | 5.70 | 7.10 | 6.00 | 23.40 |
| ZZHM22*30 | 22 | 30 | 5.70 | 7.10 | 6.00 | 25.40 |
| ZZHM25*33 | 25 | 33 | 5.70 | 7.10 | 6.00 | 28.40 |
| ZZHM30*40 | 30 | 40 | 6.00 | 7.30 | 6.00 | 34.00 |
| ZZHM32*42 | 32 | 42 | 6.50 | 8.50 | 7.00 | 36.00 |
| ZZHM35*45 | 35 | 45 | 6.50 | 7.90 | 7.00 | 39.00 |
| ZZHM40*50 | 40 | 50 | 6.50 | 7.90 | 7.00 | 44.00 |
| ZZHM45*55 | 45 | 55 | 6.50 | 7.90 | 7.00 | 49.00 |
| ZZHM50*60 | 50 | 60 | 6.50 | 7.90 | 7.00 | 54.00 |
